Rail Systems

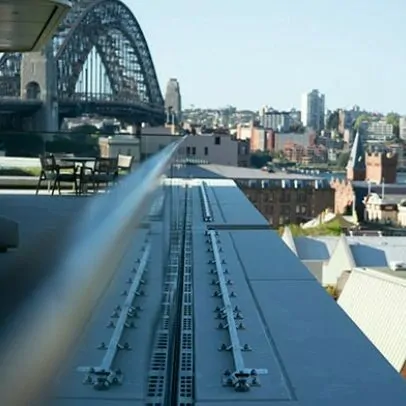

We supply and install rail systems which provide safe access over roofs and other structures whether for abseil maintenance, cleaning, inspections.
Our range of rails options allow us to tailor to your specific requirements. If your requirement is unique and you require an alternative solution than what we have included below, then we can assist also. Call us to discuss.

Söll MultiRail stainless steel system

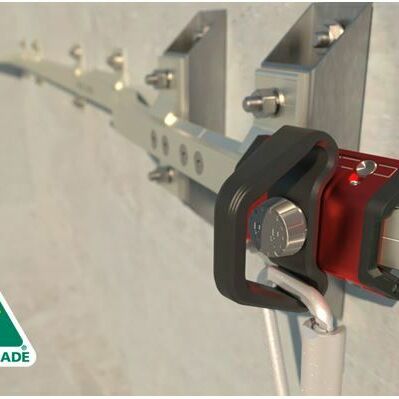

The Söll MultiRail Horizontal Rail System conforms to EN 795:2012 and CEN/TS 16415:2013. Söll MultiRail Horizontal Rail not only for installation at foot level or overhead but can also be installed sideways for use as a handrail. The high quality stainless steel product line is resistant in the toughest environmental conditions

MultiRail Components

Samples shown make up just a small part of the MultiRail component range.

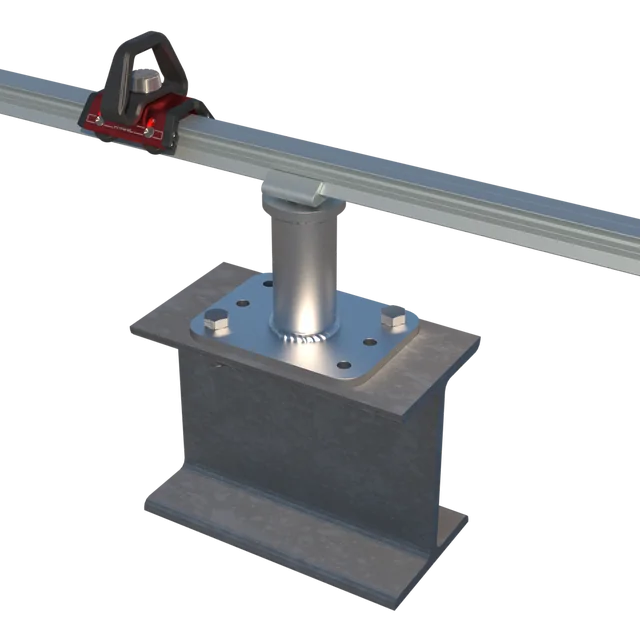

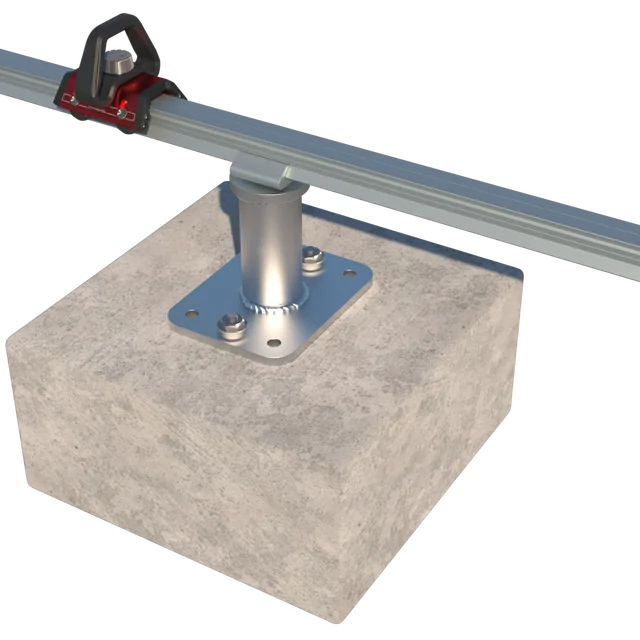

Anchor Rail

The available in stainless-steel and aluminium in lengths of 6m.

  • Stainless-steel is for Abseil and Fall Arrest
  • Aluminium is for Fall Arrest

Track change

The T-Junction allows several rail systems to be connected and facilitates changes in any direction.

  • Other configuration available.

Curves

These components allow Söll MultiRail to follow the profile of the building. The radius is 80 mm with a standard angle of 90°

  • Available in horizontal and vertical configurations

Brackets

Teflon inserts allow the rail to glide smoothly inside the brackets. The rail is not subject to any constraint and therefore compensates for thermal expansion.

  • Available in many configurations

MultiRail Shuttles

Closed runner

Available in stainless steel with polyamide inlays to minimize friction and provide great gliding performance, it is fitted with a stainless-steel connector. As wheels are not necessary, it is dirt-resistant as well as very light, only 400g. It can be removed from the system at the end-stop exit sections or remain permanently on the rail.

Openable runner

Available in stainless steel with polyamide inlays to minimize friction and provide great gliding performance, it is fitted with a stainless-steel connector. As wheels are not necessary, it is dirt-resistant as well as very light, only 600g. By means of an easy to use opening and closing mechanism, it can be removed or attached anywhere along the rail offering more flexibility to the user during his work.

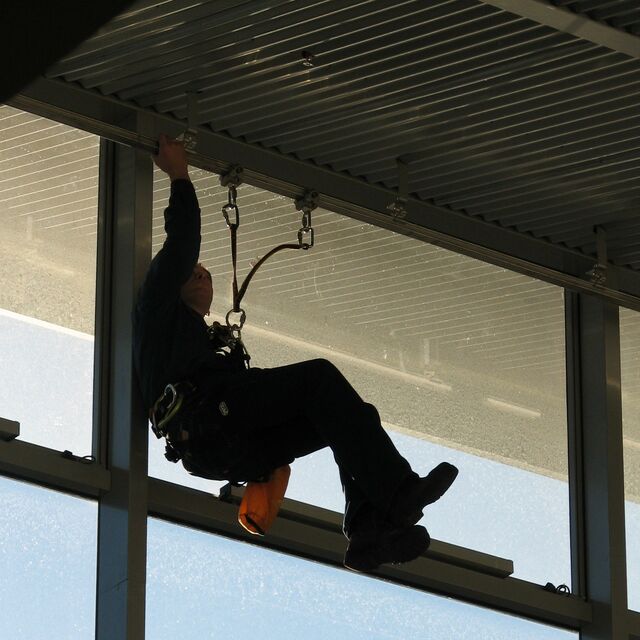

Overhead runner

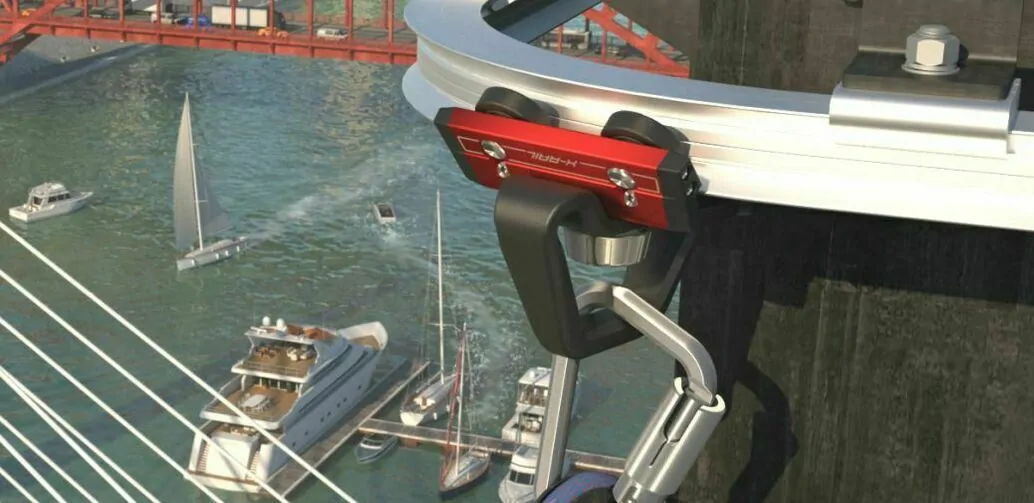

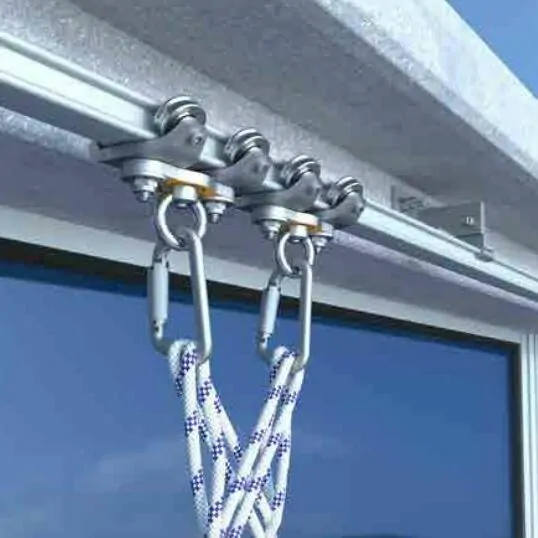

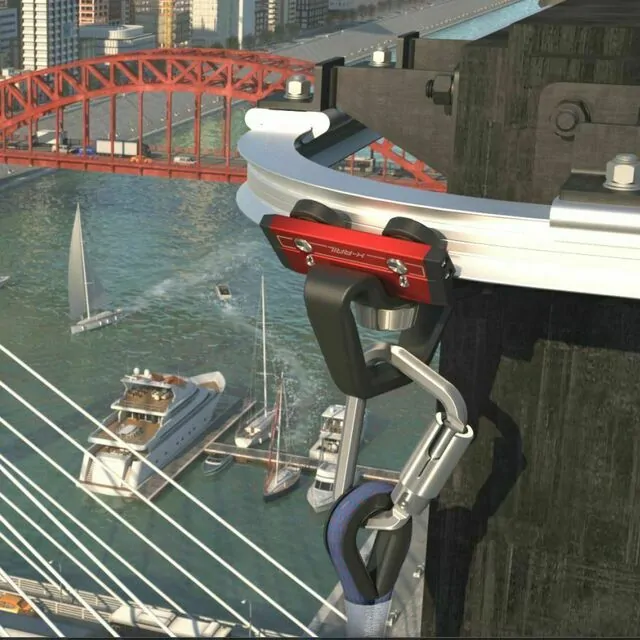

Made from stainless steel with 4 load-bearing wheels and a swivelling stainless steel eye, the wheeled runner may only be used for overhead applications. The runner can pass horizontal curves. It can be used with a self-retractable lifeline. The worker attached to the lifeline can cover a wide working zone.

Lockable runner

Made from stainless steel with an additional bolt to lock, this runner is ideal for use on rails attached to objects in motion such as those installed on trucks. The runner stays in place when the truck is driven.
